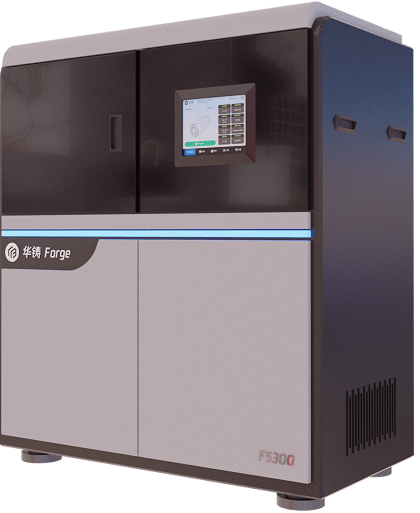

Forge 3D Printer

设备规格 Device Specification

构建尺寸
分辨率
准确性
电流电压
打印速度
打印速度
材料包装
瓶容量
机器重量
机器尺寸
文件格式
产品保修

294x212x150mm
1200x1200x1600dpi，16μm或8μm layers
± 0.08 mm per 20 mm of part dimension
220-240V AC，50/60Hz, 15A
单通道: 7.5；双通道:3.5；三通道: 2.4 (毫米/小时)
单通道:0.13 双通道:0.29 三通道:0.42 (小时/毫米)
部件材料每瓶1.2kg，支撑材料每瓶1.35kg
一台机器能各放两瓶
毛重 415kg，净重: 310kg
长1270 x 宽778 x 高1160 mm
STL，SLC，OBJ，AMF，MJPDDD
整机一年人工配件保修

Max Build Volume

294 x 212 x 150mm

Resolution

1200 x 1200 x 1600dpi，16μm/8μm layers

Accuracy

±0.08mm per 20mm of part dimension

Power Supply

220-240V AC，50/60Hz, 15A

Input & Output

220-240V AC，50Hz, 10A, Single C14 socket

Speed (mm/hr)

1-Channel = 7.5; 2-Channel = 3.5; 3-Channel = 2.4

Speed (hr/mm)

1-Channel = 0.13; 2-Channel = 0.29; 3-Channel = 0.42

Material Packaging

Build = 1.2 kg bottles; Support = 1.35 kg bottles

Bottle Capacity

2 of each (build/support)

Weight

Gross Weight = 415kg, Net Weight = 310kg

Device Dimensions

1270 x 778 x 1160 mm

File Supported

STL, SLC, OBJ, AMF, MJPDDD

Warranty

1 year
