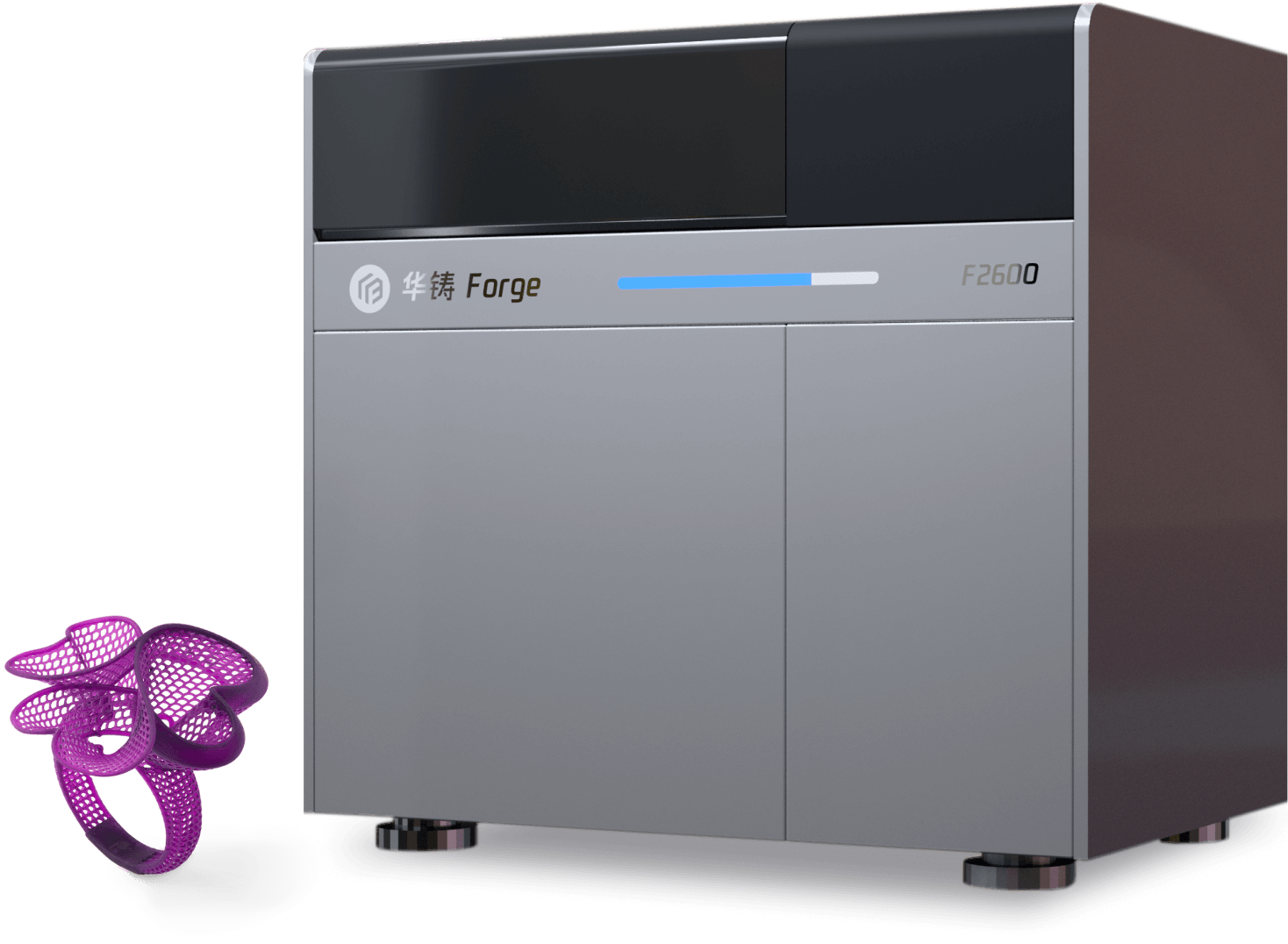

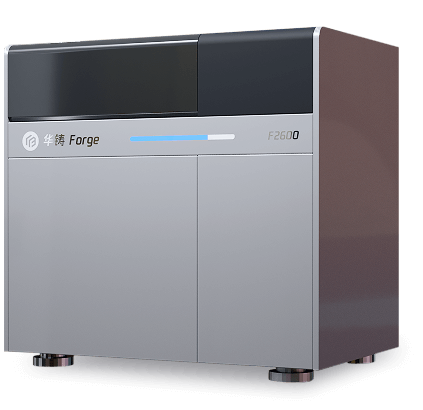

新一代智能
蜡质3D打印机
F2600
NextGeneration
Wax Printer
F2600
联系我们 Contact Us
产品特点
Features

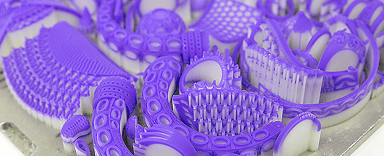

F2600蜡模打印机适用于珠宝批量生产,专注于珠宝领域,是高效率、高精度成型的器模打印机。打印机采用多喷头技术MJP,可打印超精细蜡型工件,打印界面大,每层厚度仅8um。打印工件表面质量卓越,极精细的细节和精准度,能够实现快速工作流和大批量定制直接熔蜡铸造,提高铸造生产效率。

The F2600 wax mold printer is suitable for mass production of jewelry, focusing on the jewelry field, and is a mold printer with high efficiency and high precision. The printer adopts multi-nozzle technology MJP, which can print ultra-fine wax workpieces with large printing interface and only 16um thickness per layer. Excellent surface quality of the printed workpiece, extremely fine detail and precision, enabling fast workflows and mass customization of direct wax casting, increasing foundry production efficiency.

高精细度

High Resolution

精细建模高达1600dpi

High-precision printing up to 1600 dpi

灵活转换

Flexible Switching

三通道灵活转换提升速度

Three channels enable flexible switching

智能操作

Intelligence

手机实时查看打印状态

Control and Status monitor via your phone

大尺寸构建

Large Build Volume

大尺寸满足更大的模型

Build size up to 294×212×150mm

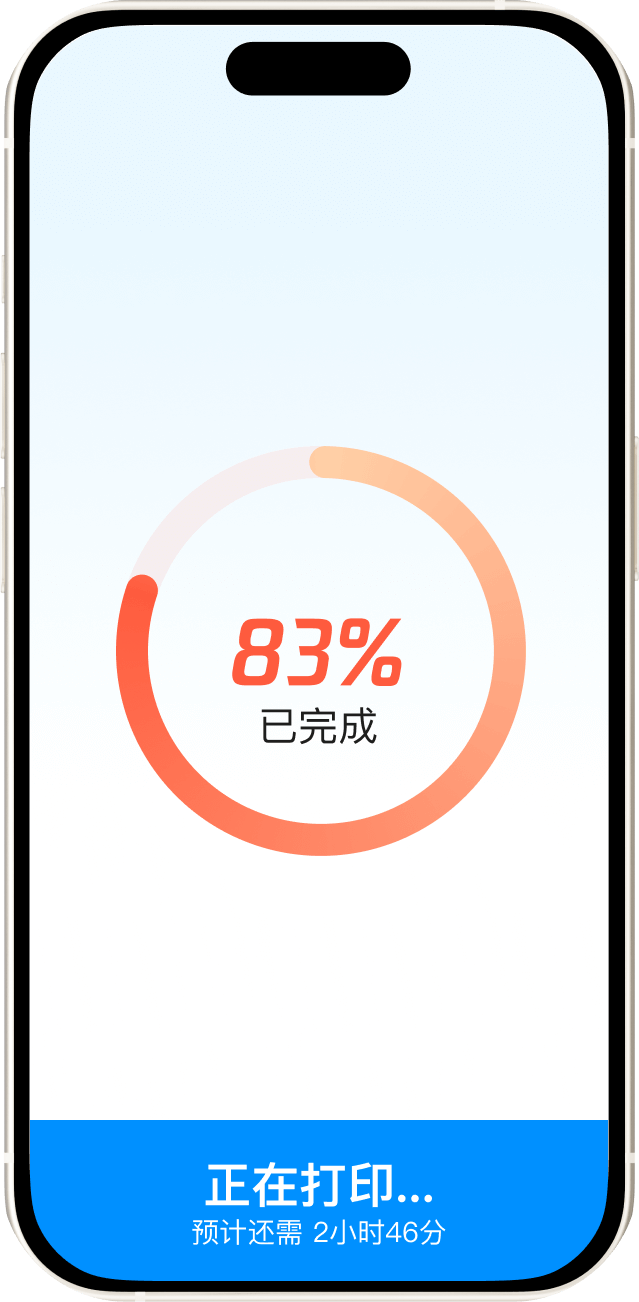

一切尽在“掌握”
Status on Your Phone
远程操控
Remote Control
使用APP您可以远程操控设备,比如,启动/暂停打印,打印完成后关闭电源等操作
Using the APP, you can remotely control the device, for example, start/pause printing, and turn off the power after printing
状态同步
Status Sync-up
使用APP您可以远程查看设备状态,比如,打印进度、打印时间及剩余时间、墨盒的使用情况等
Using the APP, you can remotely view the device status, such as print progress, print time and remaining time, ink cartridge usage, etc
设备规格 Device Specification
构建尺寸
分辨率
准确性
电流电压
打印速度
打印速度
材料包装
瓶容量
机器重量
机器尺寸
文件格式
产品保修
294x212x150mm
1200x1200x1600dpi,16μm或8μm layers
± 0.08 mm per 20 mm of part dimension
220-240V AC,50/60Hz, 15A
单通道: 7.5;双通道:3.5; 三通道: 2.4 (毫米/小时)
单通道:0.13 双通道:0.29 三通道:0.42 (小时/毫米)
部件材料每瓶1.2kg,支撑材料每瓶1.35kg
一台机器能各放两瓶
毛重 415kg,净重: 310kg
长1270 x 宽778 x 高1160 mm
STL,SLC,OBJ,AMF,MJPDDD
整机一年人工配件保修
Max Build Volume
294 x 212 x 150mm
Resolution
1200 x 1200 x 1600dpi,16μm/8μm layers
Dimensional Accuracy
±0.08mm per 20mm of part dimension
Power Supply
220-240V AC,50/60Hz, 15A
Input & Output
220-240V AC,50Hz, 10A, Single C14 socket
Speed (mm/hr)
1-Channel = 7.5; 2-Channel = 3.5; 3-Channel = 2.4
Speed (hr/mm)
1-Channel = 0.13; 2-Channel = 0.29; 3-Channel = 0.42
Material Packaging
Build = 1.2 kg bottles; Support = 1.35 kg bottles
Bottle Capacity
2 of each (build/support)
Weight
Gross Weight = 415kg, Net Weight = 310kg
Device Dimensions
1270 x 778 x 1160 mm
File Supported
STL, SLC, OBJ, AMF, MJPDDD
Warranty
1 year
